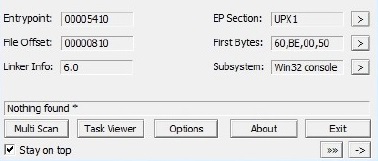

UPX shorthand for the Ultimate Packer for executables. UPX is a free, portable, extendable, high-performance executable packer for several executable formats. It typically compresses better than WinZip/zip/gzip. Its written in C++ and because of its of its class layout it’s very easy to add new executable formats or new compression algorithms. A typical malware file packed with UPX will look something like this in PEiD.

Unpacking UPX

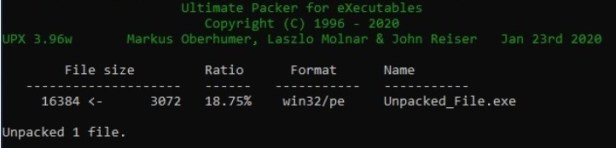

UPX uses the command line to unpack the file with the command: upx –o Unpacked_File.exe Packed_File.exe

Unpacking A Modified UPX Packer

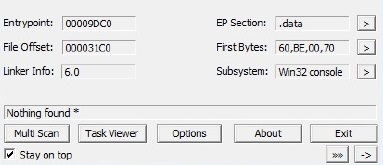

The next packed file when placed in PEid does not detect the packer.

This file is packed with a slightly modified version of UPX. A section in the file named UPX 2 made me suspect this was a UPX-like packer. A modified UPX packer makes it more resistant to signature detection.

x64dbg

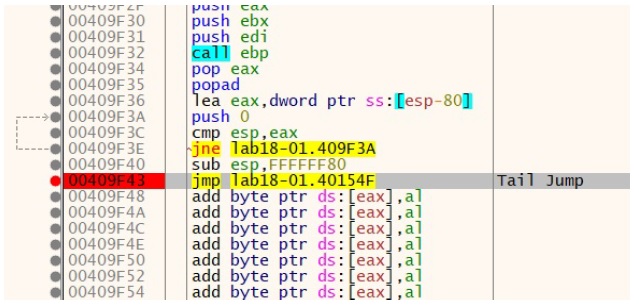

Loading this file into a debugger and searching for the tail jump. The tail jump is a jump instruction to the original entry point to the malware.

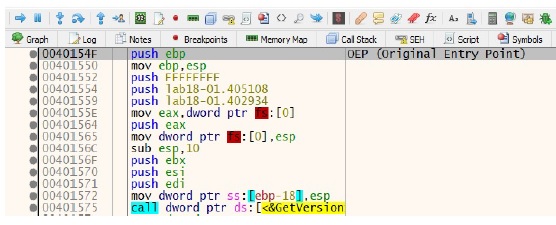

We set a breakpoint at this location 40154F. This is the original entry point of the program. We run the program and step into this location. Here we hit the original entry point.

Scylla Plug-in

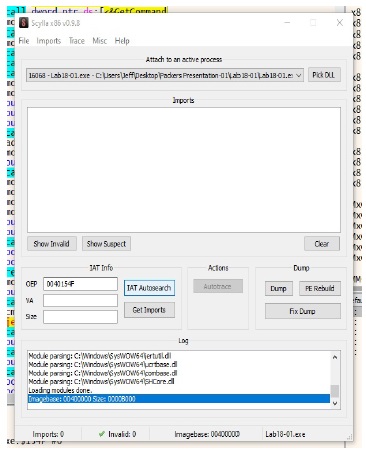

We use the Scylla Plug-in in x64dbg to extract the binary.

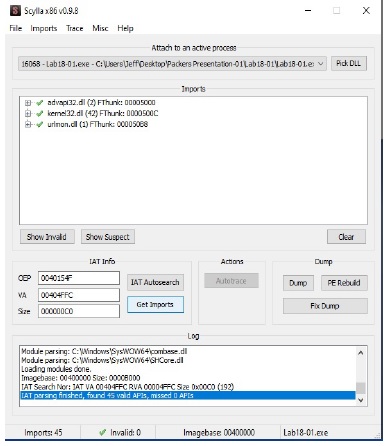

I have to click Autosearch to scan for Imports. When that is complete I click on Get Imports to get a list of all the imports found.

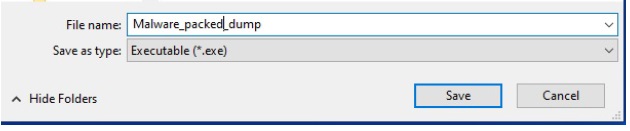

I click on Dump to dump the extracted binary. I rename it to Malware_packed_dump.

I save the binary and open it in IDA pro where now I have access to the full unpacked executable.
